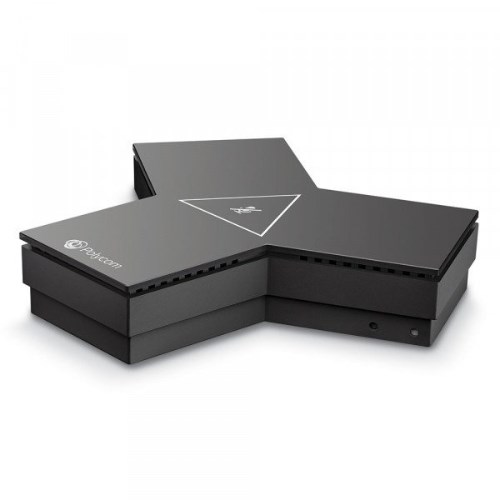

The Poly IP Table Microphone Array is a crucial audio peripheral for Poly's G7500 and Studio G62 conferencing systems, designed to capture high-quality audio in mid-size to large meeting rooms.
Advanced Audio Features
The microphone array leverages advanced digital signal processing features provided by the host G7500 or Studio G62 system to optimize the meeting experience:
Polycom NoiseBlockAI: This intelligent technology automatically mutes the microphone when non-speech noises (like typing, shuffling papers, or side conversations) occur, ensuring that only relevant voices are transmitted.
Acoustic Fence: This feature creates a virtual audio "fence" or boundary in the room. The system captures audio only from within this specified area, effectively blocking out sounds from outside the fence.
360-Degree Coverage: The three directional microphones are arranged to provide full 360-degree audio pickup, ensuring all participants around a conference table are heard clearly.
Compatibility and Expandability
The IP Table Microphone Array is highly compatible and designed for scalable audio solutions in professional environments:
Host Systems: It is primarily compatible with the Poly G7500 and Poly Studio G62 video conferencing codecs.
Multi-Unit Support: A single G7500 or G62 system can support up to three of these IP Table Microphones, allowing coverage for larger or uniquely shaped rooms.
Plug-and-Play Setup: It integrates effortlessly with the host system using a single Ethernet cable for power, control, and audio transmission, simplifying installation.
KEY SPECIFICATIONS:
Microphones: Three (3) integrated unidirectional cardioid pattern microphones.
Audio Pickup Range: The maximum audio pickup range is up to 2.5 m
Frequency Response: The microphone captures sound frequencies from 80 Hz to 20 kHz.
Sensitivity: -40 dB (V/Pa).
Signal-to-Noise Ratio (SNR): >70 dB.
Maximum SPL: >90 dB.
Connectivity: A single RJ45 LAN port is used for both power and data connectivity via the included 7.6 m shielded Ethernet cable.
Power: It uses Power over Ethernet (PoE), 802.1af standard, with a maximum power consumption of 15.4W.
Dimensions (WxDxH): 119.8 x 138 x 25.4 mm
Weight: 0.20 kg
