| Maximum Video Resolution (Megapixels) |
12MP |
| Examples of Channels at a resolution with FPS |
640Mbps |
| Video Compression |
H.264, H.264+, H.265, H.265+ |
| Video Output Resolution |
8MP, 5MP, 3MP, 2MP(1080P), 1.3MP(960P), 1.0MP(720P) |
| Image Display |
1, 4, 6, 8, 9, 10, 12, 13, 14, 16, 17, 19, 20, 22, 25, 32, 36, 42, 49, 56, 64 |
| Search Method |
Continuous, Scheduling, Event Triggered By IVS filtering. Snapshot Searching, Tagging footage, Time Lapse, Slice (Multiple Snapshot Thumbnail Search Per Hour), General (Indicated Timeline search). |
| Total Storage Potential (TB) |
96 |
| HDD Bays, Size |
Bays x 4, up to 24TB per HDD |
| RAID |
n/a |
| Software |
Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app |
| Protocols |
TCP, IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP, RTSP, DNS, DDNS, NTP, PPPOE, UPNP, SMTP, SMTP, P2P (QR code) |
| Language |
English, French, Spanish, Portuguese, German, Italian, Greek, Danish, Finnish, Russia,
Hebrew, Turkish, Bulgarian, Arabic, Korean, Japanese, Thai, Hindi, Romanian, Dutch, Polish |
| Audio Streaming |
Audio out |
| Non-Power Over Ethernet Ports |
2 |
| Power Over Ethernet Ports |
0 |
| Power Supply |
Internal |
| Power Consumption |
8W (Without HDD) |
| Connectors |

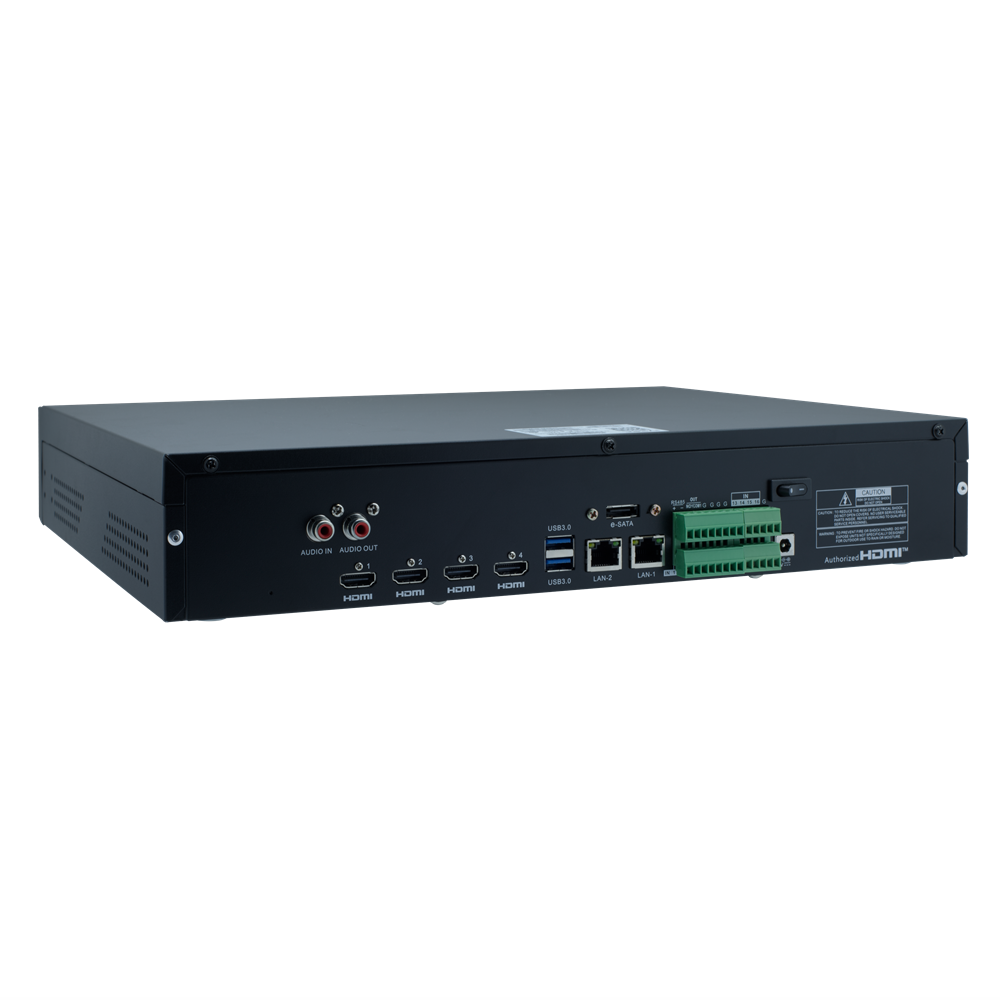

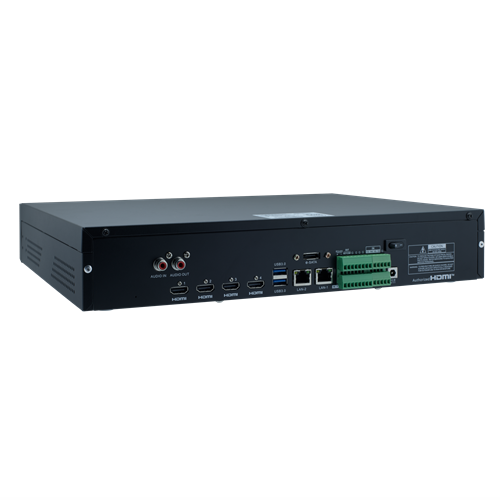

HDD: 3.5″ SATA HDD Slot x 4, USB2 Female x 2, Gigabit Ethernet: RJ-45 Port x 2, 4 x HDMI, e-Sata x1, Alarm ports 8 in and 1 out, RS485, Audio out, Power input x 1, On off switch |
| Operating Environment |
(-)10°C ~ +50°C (14°F ~ 122°F) Humidity : Less than 90%RH |
| In The Box |
Printed quick installation guide, Mouse, HDD screws, Power supply |
| Warranty |
2 Years Parts |
| Product Dimensions (H x W x L) mm |
66 x 326 x 378 |
| Packaging Dimensions (H x W x L) mm |
110 x 330 x 460 |
| Weight (Net) kg |
5.3 |
| Weight (Gross) (kg) |
5.6 |
