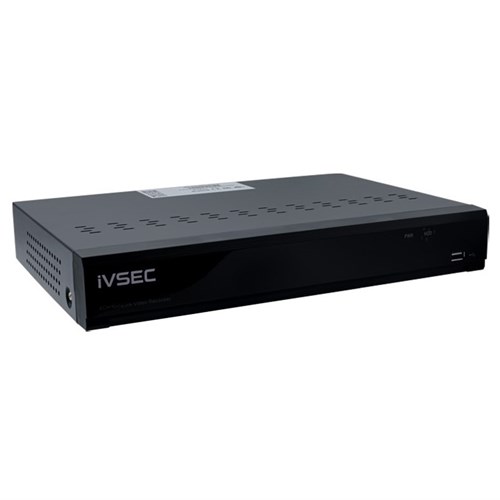

This 8 channel PoE NVR is a compact yet powerful solution for your everyday surveillance needs. With support for up to 8 IP cameras, it offers seamless recording and monitoring. The NVR’s storage capacity allows for a single HDD up to 16TB. This generous storage space ensures extended retention of crucial footage. The NVR’s PoE feature simplifies camera setup by delivering both power and data over a single Ethernet cable, reducing installation complexity. This makes it an ideal choice for small to medium-scale security setups seeking high-capacity storage and efficient camera management.

Maximum Channels 8
Maximum Video Resolution (Megapixels) 12MP
Examples of Channels at a resolution with FPS 76 Mbps
Video Compression H.264, H.264+, H.265, H.265+, MJPEG
Video Output Resolution 4K, HD-1080p, HD-720p, 1.3 MP, D1, VGA
Image Display 1, 4, 8
Search Method Continuous, Scheduling, Event Triggered By IVS filtering. Snapshot Searching, Tagging footage, Time Lapse, Slice (Multiple Snapshot Thumbnail Search Per Hour), General (Indicated Timeline Seach).
Total Storage Potential (TB) 16
HDD Bays, Size Bays x 1, up to 16TB per HDD
Intelligent Video (Dependant On Camera) Motion Detection, IVS -Perimeter Intrusion Detection, Face Recognition, Human & Vehicle Detection, Line Crossing Detection, Stationary Object Detection, Crossing Counting, Heat Map, Crowd Density Detection, Queue Length Detection, License Plate Detection, Rare Sound Detection, Video Tampering
Protocols TCP, IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP, RTSP, DNS, DDNS, NTP, PPPOE, UPNP, SMTP, SMTP, P2P (QR code)
Language English, French, Spanish, Portuguese, German, Italian, Greek, Danish, Finnish, Russia, Hebrew, Turkish, Bulgarian, Arabic, Korean, Japanese, Thai, Hindi, Romanian, Dutch, Polish
Audio Streaming Two Way
Power Over Ethernet 8
Power Supply DC 48V, 1.2A
Power Consumption 5W (Without HDD)

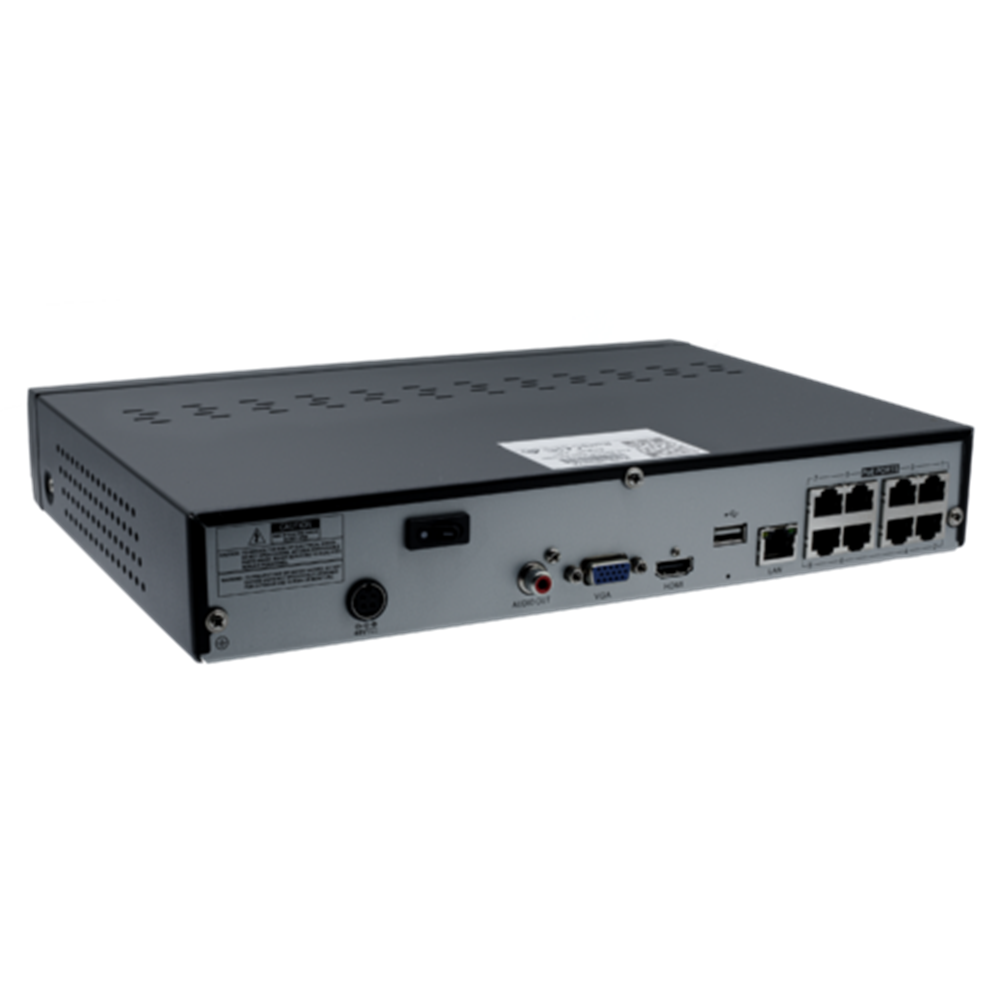

Connectors HDD: 3.5″ SATA HDD Slot x 1, USB2 Female x 2, Gigabit Ethernet: RJ-45 Port x 1 and 8 x PoE+ports, HDMI, VGA, Audio in and out, Power Jack input, On off switch
Operating Environment 5ºC to 40ºC (41ºF-113ºF) Humidity: 20%-80% RH
In The Box Printed quick installation guide, Mouse, HDD screws, Power supply
Warranty 2 Years Parts
Product Dimensions (H x W x L) mm 53 x 300 x227
Packaging Dimensions (H x W x L) mm 100 x 400 x 290
Weight (Net) kg 1.30
Weight (Gross) (kg) 1.60
