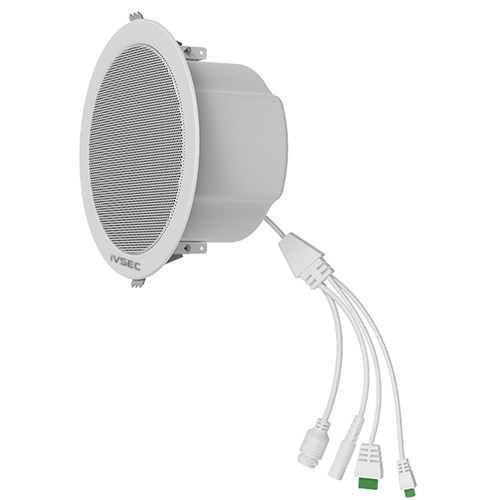

The iVSEC NS300YA is a compact, ceiling-mounted SIP speaker designed for indoor paging and broadcast applications. Built for commercial environments such as offices, schools, and retail spaces, it can operate as a standalone audio device or integrate with broader communication and security systems.
With a 10W speaker and up to 105dB sound pressure, the iVSEC NS300YA delivers clear and consistent audio coverage across indoor areas. It supports HD codecs , along with MP3 and WAV playback, while a built-in microphone enables two-way intercom and monitoring functionality.
The iVSEC NS300YA supports SIP protocol, multicast paging, and flexible system integration via APIs and I/O interfaces. Features such as scheduled broadcasting, emergency alerts, and remote management make it a versatile solution, while PoE support and simple ceiling installation ensure efficient deployment in modern IP-based audio systems.
| Colour |
White |
| Mouning |
Ceiling |
| SIP Accounts |
2 |
| Multicast Partitions |
20 |
| Customised Audio Support |
Yes |
| Auto Answer |
Yes |
| HTTP/Webhook Support |
Yes |
| DTMF Support |
Yes |
| Web GUI |
Yes |
| Storage Capacity (Mb) |
500 |
| ONVIF |
Yes |
| Protocols |
DHCP, FTP/TFTP, HTTP/HTTPS, IPv6, L2TP, OpenVPN, PPPoE, RTP/RTCP/SRTP, SIP2.0, SNTP, STUN, TR-069 |
| Encoding |
G.722, Opus |
| Language |
English |
| Auto-Provisioning |
Yes |
| Outdoor Use |
No |
| Accessories |
n/a |
| Frequency Response |
25Hz-20KHz |
| Speaker Sensitivity |
90± 3dB |
| Impedance |
8Ω |
| Max SPL |
105dB |
| Speaker Power Max |
6W (PoE), 10W (PoE+), 10W (12-24V DC/2A) |
| Additional Speaker Support |
No |
| Microphone |
Yes |
| Microphone Sensitivity |
-38± 3dB |
| Self Testing Feature |
Yes |
| Ethernet |
Yes (10/100 Mbps) |
| Power Over Ethernet |
Yes |
| Power Supply |
24V DC/2A, PoE, PoE+ |
| Power Consumption |
10W max |
| Connectors |
2.1mm DC input, 1 x Relay input, 1 x Relay output, 1 x RJ45 port |
| Wi-Fi |
No |
| Bluetooth |
No |
| Operating Environment |
-20℃ – 55℃ (10-95% RH) |
| Storage Environment |
-30℃ – 60℃ |
| In The Box |
1 x SIP Speaker, 1 x Quick Guide |
| Warranty |
2 Years Parts |
| Product Dimensions (H x W x L) mm |
90 x 200 x 200 |
| Packaging Dimensions (H x W x L) mm |
105 x 200 x 200 |
| Weight (Net) kg |
14.00 |
| Weight (Gross) (kg) |
15.44 |
