IVSEC - IVNC323ADX

Supplier Product Code:
NC323ADX
IVSEC TURRET IP CAMERA, 8MP, 2.8MM FIXED LENS, 25FPS, POE, IP66 , ADV DET, ADV IVS
RRP $412.50 inc GST
To purchase this item, please login to your Alloys account.

IVSEC Storage Calculator https://ivsecurity.com.au/storage-calculator/

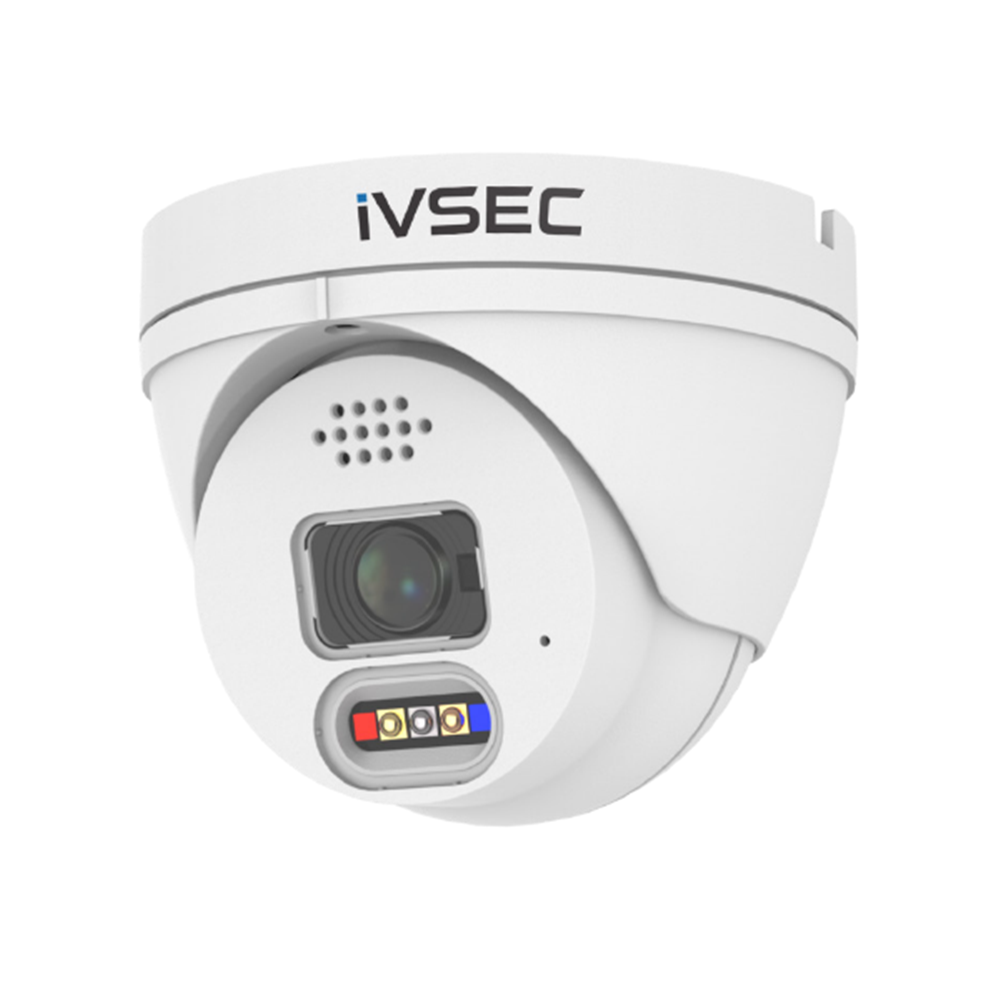

NC323ADX Security Camera
 SONY 8MP (4K) Sensor at 25 photos per second. Top-tier in fixed lens cameras. There has been a technological leap in AI analytics/intelligent video implemented in this camera. Full colour at night. Advanced Deterrent features -red/blue strobing lights and siren: Speak to talk through the mobile app or set off the siren full colour at night. Great for general wide-angle view, indoors or outdoors.

Camera Type Turret
Image Sensor SONY 1/2.8″ Progressive CMOS
Maximum Video Resolution (Megapixels) 8
Maximum Video Resolution 3840 x 2160
Lens 2.8 mm (H.FOV: 106°)
Lens Type Fixed
Maximum Night IR Distance (M) 25
Video Compression H.265+, H.265, H.264+, H.264, MJPEG
ONVIF depends on firmware version ONVIF( Profile S/G/T) 21.12 or greater, Http API
IP Rating IP66
Operating Environment -35ºC to 60ºC (31ºF-140ºF) Humidity: 20%-95% RH
Dimensions Ø100 X 90mm
Weight (Net) 0.312
Accessories IV2422X, IV2433X, IV2444X, IV2455X
Power Supply Power over Ethernet IEEE 802.3af, DC12V
Power Consumption <7.2W
Connectors RJ-45 , DC Power Input, Reset Button
Outdoor Use Yes
Vandal Resistant Yes
Frame Rate at Resolution 25
Day/Night Mode Schedule (Time Based), Full colour (white LEDS) or Day/Night (IR LEDS)
LED Types IR, Warm White, Red and Blue
Image Enhancement SMART IR, Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue, Mirror, Angle Flip, Corridor Mode, Back Light, White Balance, Shutter, Time Exposure, Defog, 3D Noise Reduction
Edge Recording microSD/SDHC Card Micro SD/SDHC Card
Multiple Streams (encode format) 3 Streams
Audio Streaming Two-way audio (microphone with a distance [up to 8m] and speaker included)
Protocols TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPNP, SMTP, SNMP, P2P (QR code)
Intelligent Video (IVS) Face Recognition, Licence Plate Recognition, Perimeter Intrusion Detection, Face Recognition, Human & Vehicle Detection, Line Crossing Detection, Stationary Object Detection, Crossing Counting, Heat Map, Crowd Density Detection, Queue Length Detection, License Plate Detection, Rare sound detection
Cloud option (camera only) Dropbox
Software Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app (QR code)
Power Over Ethernet Yes
Ethernet Ethernet (10/100 Base-T)
In The Box Free Software available (ivsecurity.com.au/support/software), Printed quick user guide, installation template, mounting screws and plugs
Warranty 3 Year Warranty

Enquire now for specialist advice: https://ivsecurity.com.au/contact/
