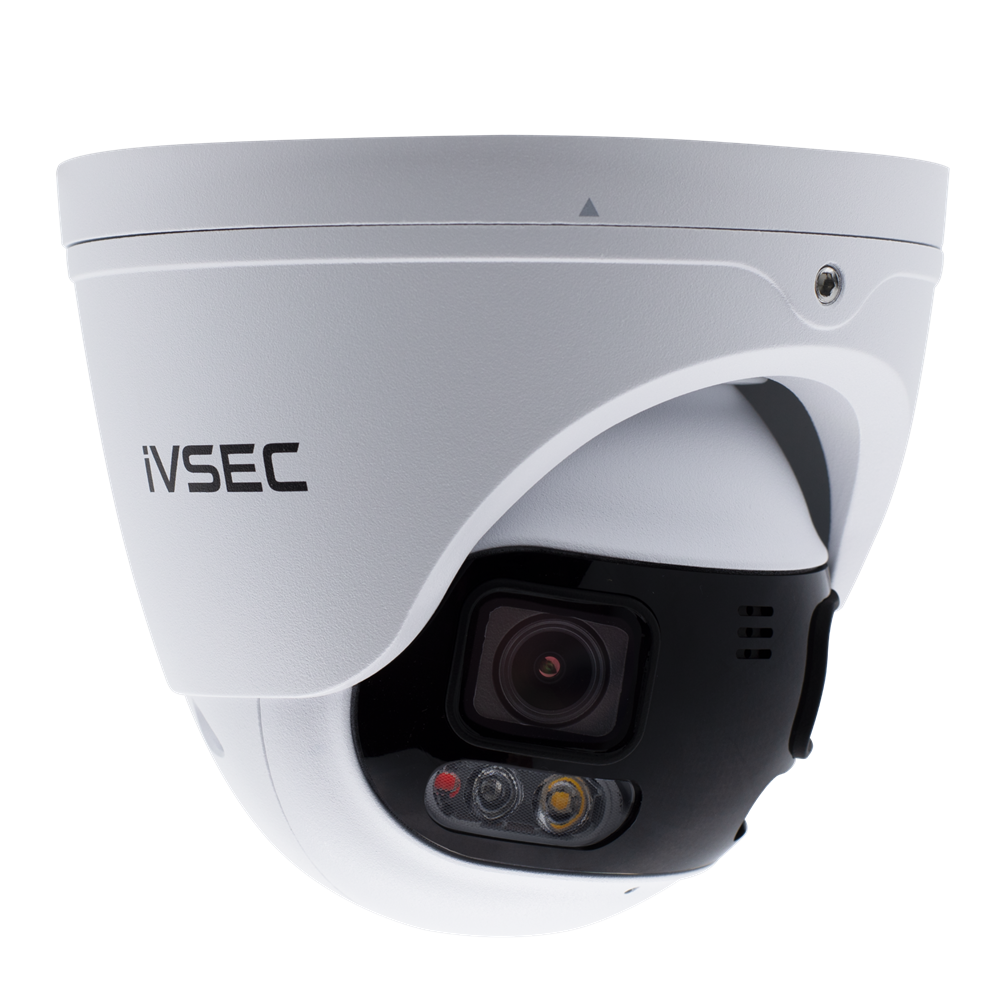

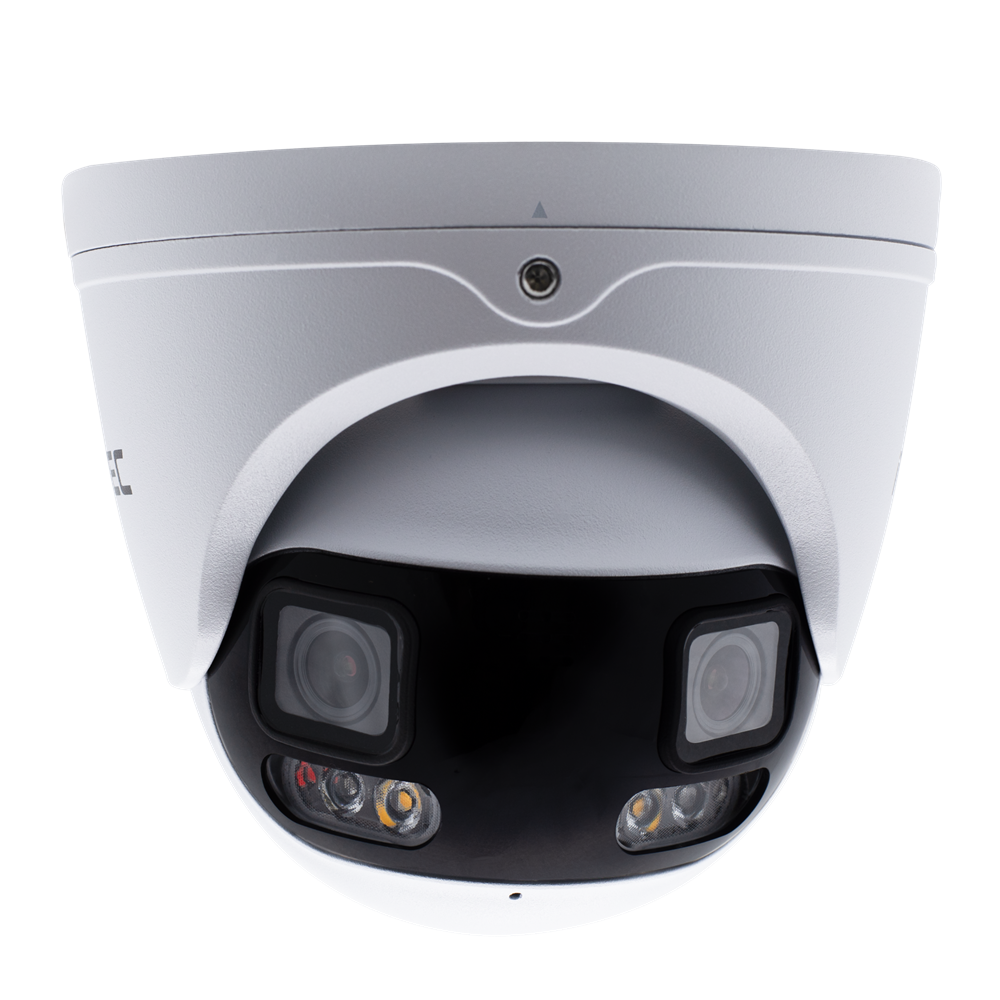

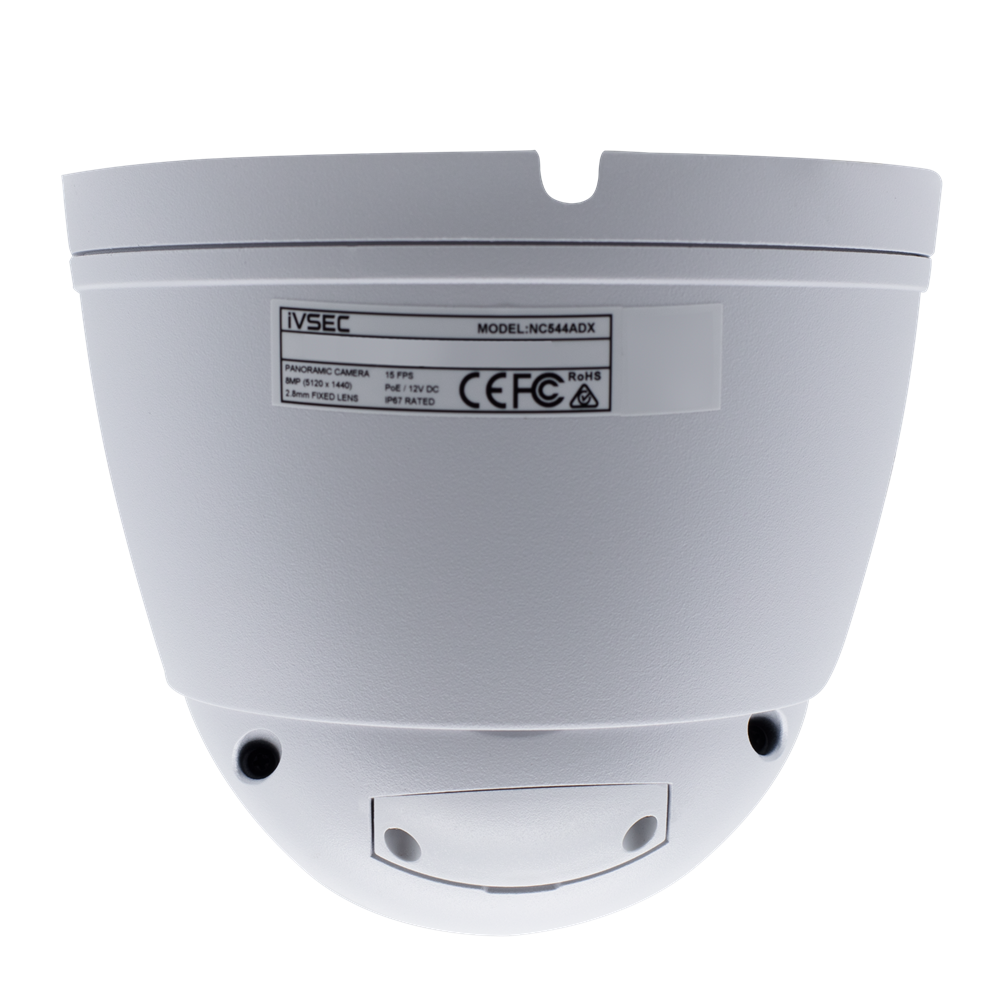

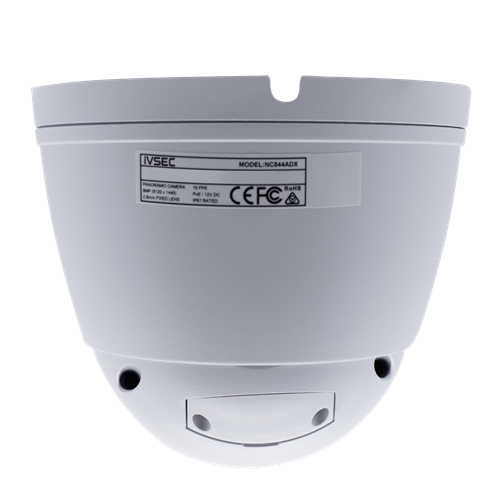

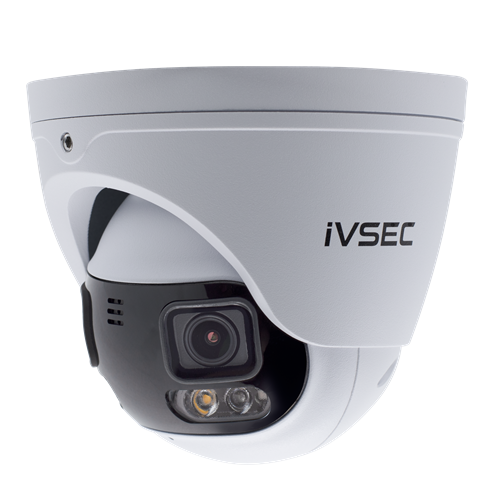

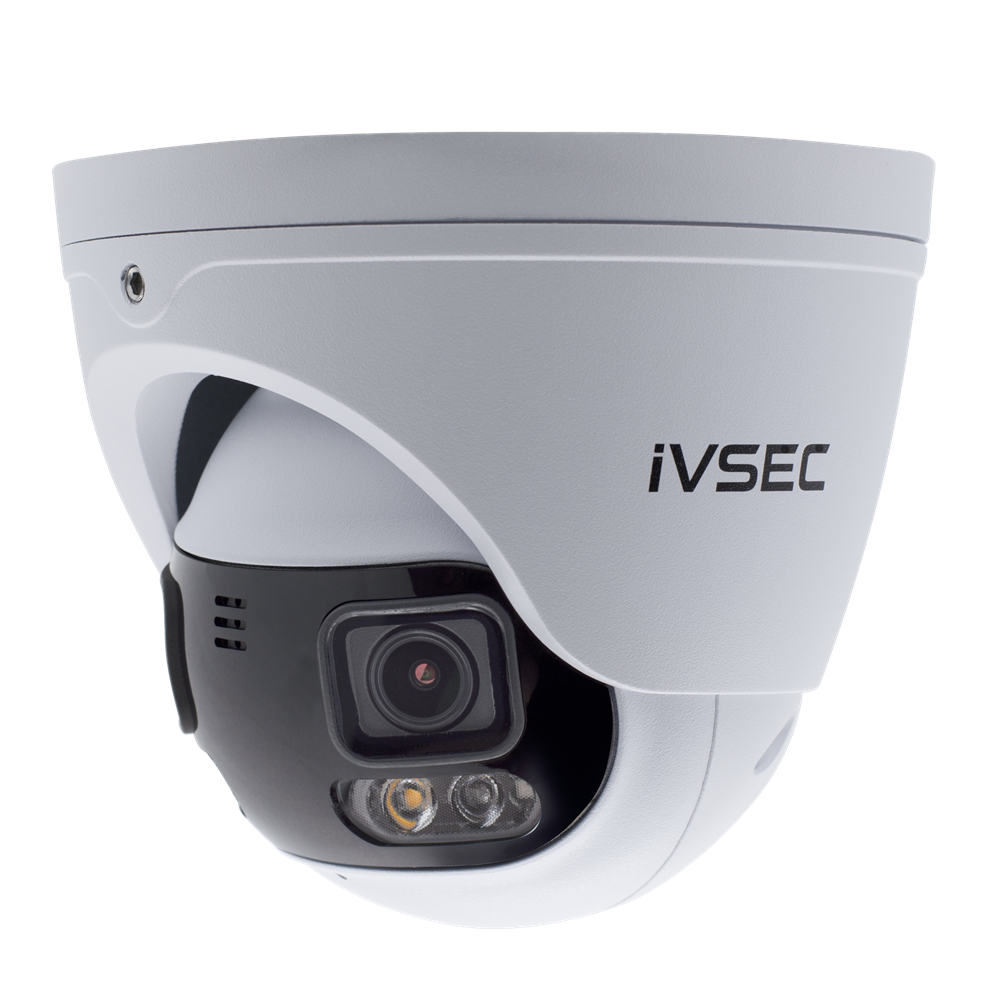

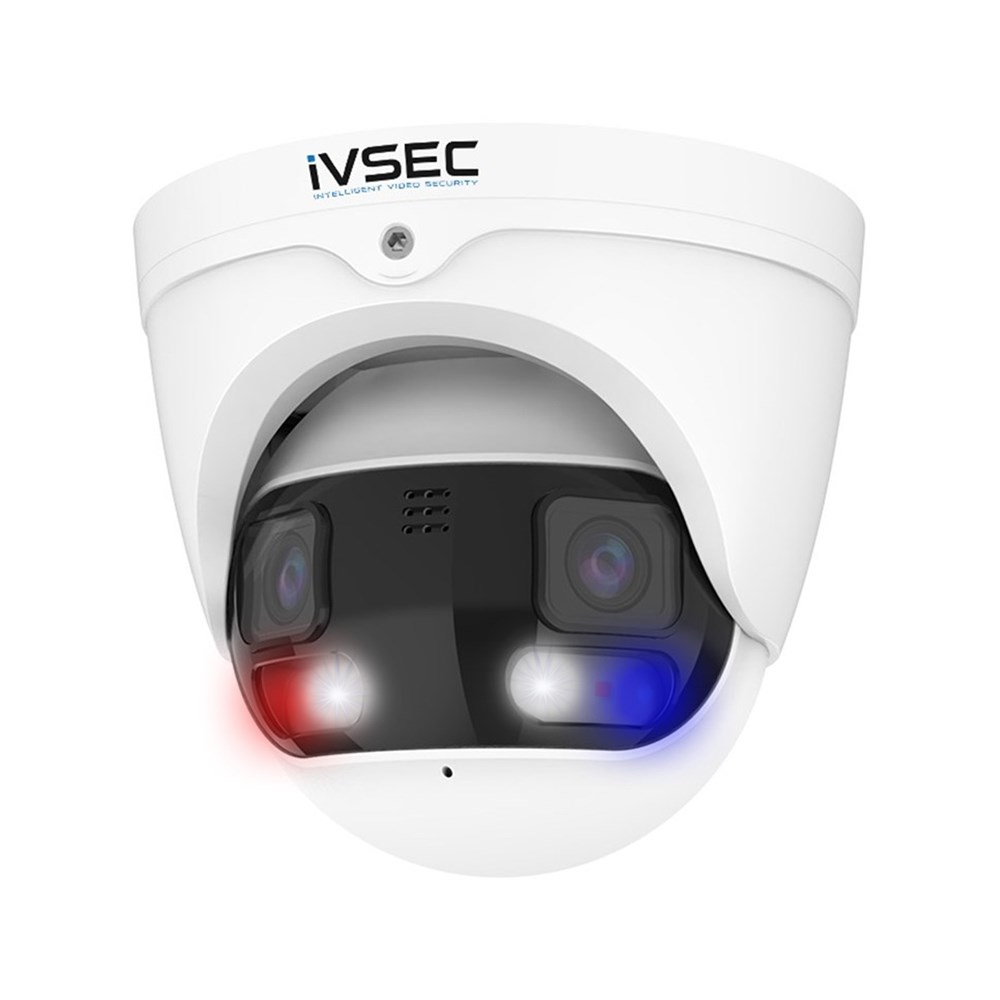

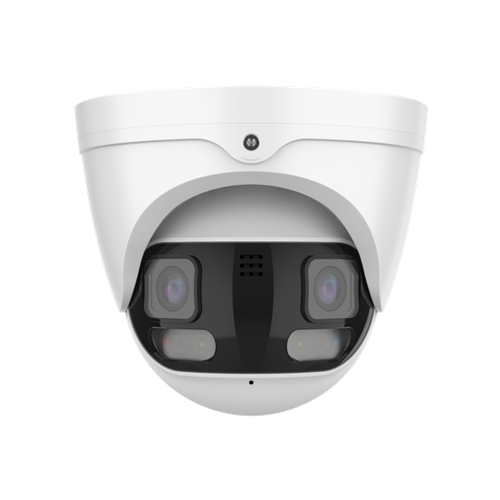

The NC544ADX is an advanced eyeball IP camera designed to deliver unparalleled surveillance capabilities in various environments. It captures crisp and detailed images over a wide area, ensuring comprehensive coverage for enhanced security.

Camera Type Panoramic
Image Sensor 2 x 1/2.7″ Progressive CMOS
Maximum Video Resolution (Megapixels) 8
Maximum Video Resolution 5120 x 1440
Frames Per Second (FPS) 20
Lens 2.8mm (180°)
Lens Type Panoramic
Maximum Night IR Distance (M) 30
LED IR, Red & Blue, Warm White
Video Compression H.265+, H.265, H.264+, H.264, MJPEG
ONVIF depends on firmware version ONVIF (Profile S/G/T), HTTP API
Accessories IV2422X, IV2433X, IV2444X, IV2455X, IV2457X, IV2477X
Outdoor Use Yes
IP Rating IP67
Vandal Resistant Yes (IK10)
Day/Night Mode Day, Night, Auto, Schedule
Image Enhancement Rotate, Saturation, Brightness, Contrast, Sharpness, White Balance, BLC, 3D DNR, HLC
Intelligent Video (IVS) Motion Detection, Face Recogniton, Pedestrian & Vehicle Detection, Line Crossing, Object Detection, Cross Counting, Heat Map, Crowd Density, Queue Length, License Plate Recognition, Intrusion, Region Entrance, Region Exiting
Edge Recording microSD/SDHC Card Micro SD/SDHC Card
Multiple Streams (encode format) 2 Streams
Software Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app (QR code)
Protocols TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP, PPPoE
Cloud option (camera only) Dropbox
Audio Streaming Yes (microphone and speaker included)
Ethernet Ethernet (10/100/1000 Base-T)
Power Over Ethernet Yes
Power Supply Power over Ethernet IEEE 802.3at, DC12V
Power Consumption < 14W
Connectors RJ-45, DC Power Input, Reset Button
Operating Environment -30ºC to 60ºC (-22ºF-149ºF) | Humidity: ≤90% RH
In The Box Free Software available from FTP, Printed quick user guide, Installation template, Mounting screws and plugs
Product Dimensions (H x W x L) mm 127 x 136 x 136
Warranty 3 Year Warranty
