IVSEC - IVNC317ADX

Supplier Product Code:
NC317ADX
IVSEC BULLET IP CAMERA, 5MP, 2.8MM-12MM MOTORISED LENS, 25FPS, POE, IP66, ADV DET
RRP $376.20 inc GST
To purchase this item, please login to your Alloys account.

IVSEC Storage Calculator https://ivsecurity.com.au/storage-calculator/

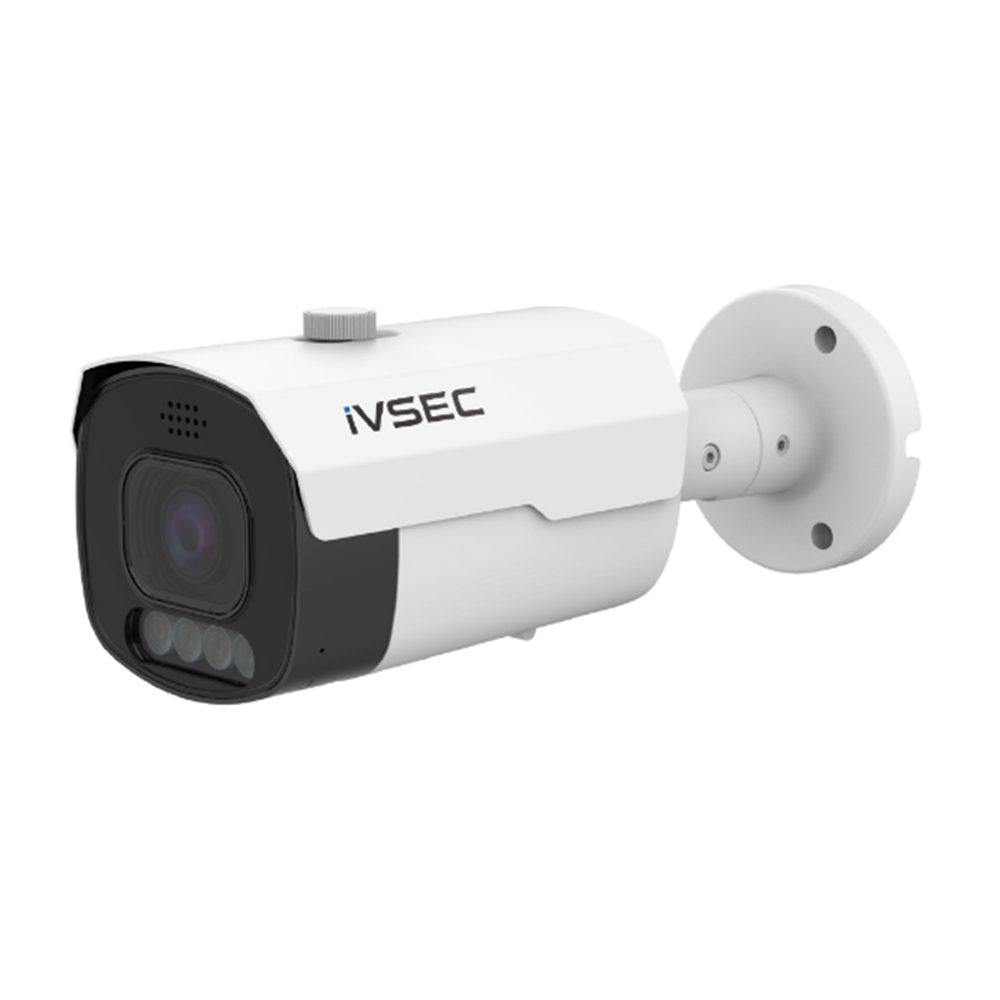

NC317ADX Security Camera
 Superior to a fixed wide-angle lens, the motorised lens optimises field of view. Includes Advanced Deterrent features -red/blue strobing lights and siren: Speak to talk through the mobile app or set off the siren full colour at night. Robust metal housing – best installed out of reach. Quality AI for Human and Vehicle Detection -a step-up from standard Smart Motion Detection with greater range of detection and reduced false notifications.

Camera Type Bullet
Image Sensor 1/2.7″ Progressive CMOS
Maximum Video Resolution (Megapixels) 5
Maximum Video Resolution 2880 x 1620
Lens 2.8-12 mm (H.FOV: 113 to 35°)
Lens Type Motorised Zoom
Maximum Night IR Distance (M) 30
Video Compression H.265+, H.265, H.264+, H.264, MJPEG
ONVIF depends on firmware version ONVIF( Profile S/G/T) 21.12 or greater, Http API
IP Rating IP66
Operating Environment -35ºC to 60ºC (-31ºF-140ºF) Humidity: 20%-95% RH
Dimensions Ø151 X 113mm
Weight (Net) 0.9
Accessories IV2422X, IV2477X, IV2433X, IV2490X
Power Supply Power over Ethernet IEEE 802.3af, DC12V
Power Consumption <10.5W
Connectors RJ-45 , DC Power Input, Reset Button
Outdoor Use Yes
Vandal Resistant Yes
Frame Rate at Resolution 25
Day/Night Mode Schedule (Time Based), Full colour (white LEDS) or Day/Night (IR LEDS)
LED Types IR, Warm White, Red and Blue
Image Enhancement SMART IR, Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue, Mirror, Angle Flip, Corridor Mode, Back Light, White Balance, Shutter, Time Exposure, Defog, 3D Noise Reduction
Edge Recording microSD/SDHC Card Micro SD/SDHC Card
Multiple Streams (encode format) 3 Streams
Audio Streaming Two-way audio (microphone with a distance [up to 8m] and speaker included)
Protocols TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPNP, SMTP, SNMP, P2P (QR code)
Intelligent Video (IVS) Face Detection, Human&Vehicle Detection, Perimeter Intrusion Detection, Line Crossing Detection, Cross Counting, Stationary Object Detection, Heat Map, Crowd Density Detection, Queue Length Detection, License Plate Detection, Rare Sound Detection
Cloud option (camera only) Dropbox
Software Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app (QR code)
Power Over Ethernet Yes
Ethernet Ethernet (10/100 Base-T)
In The Box Free Software available (ivsecurity.com.au/support/software), Printed quick user guide, installation template, mounting screws and plugs
Warranty 3 Year Warranty

Enquire now for specialist advice: https://ivsecurity.com.au/contact/
