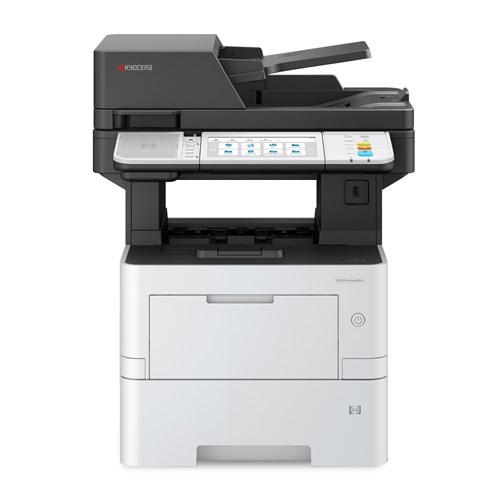

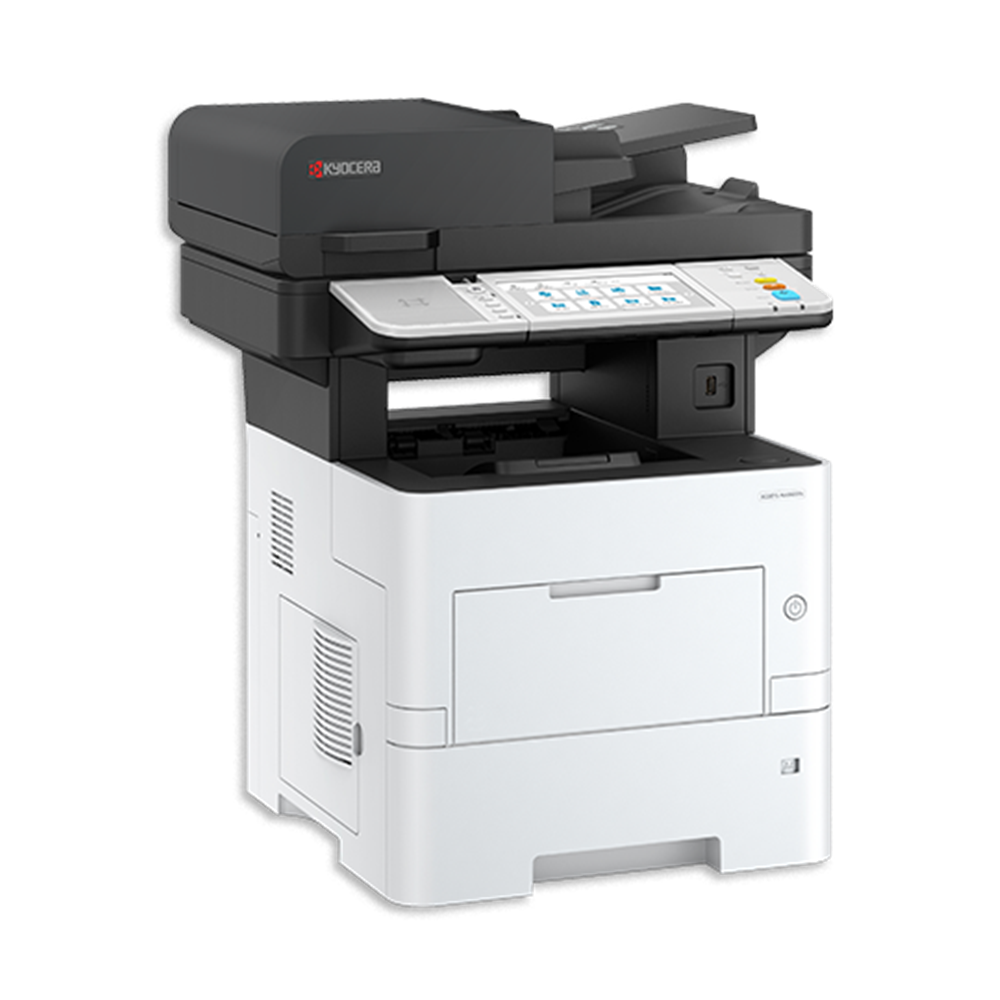

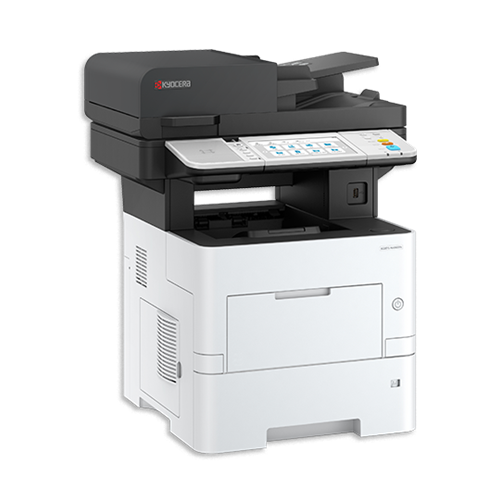

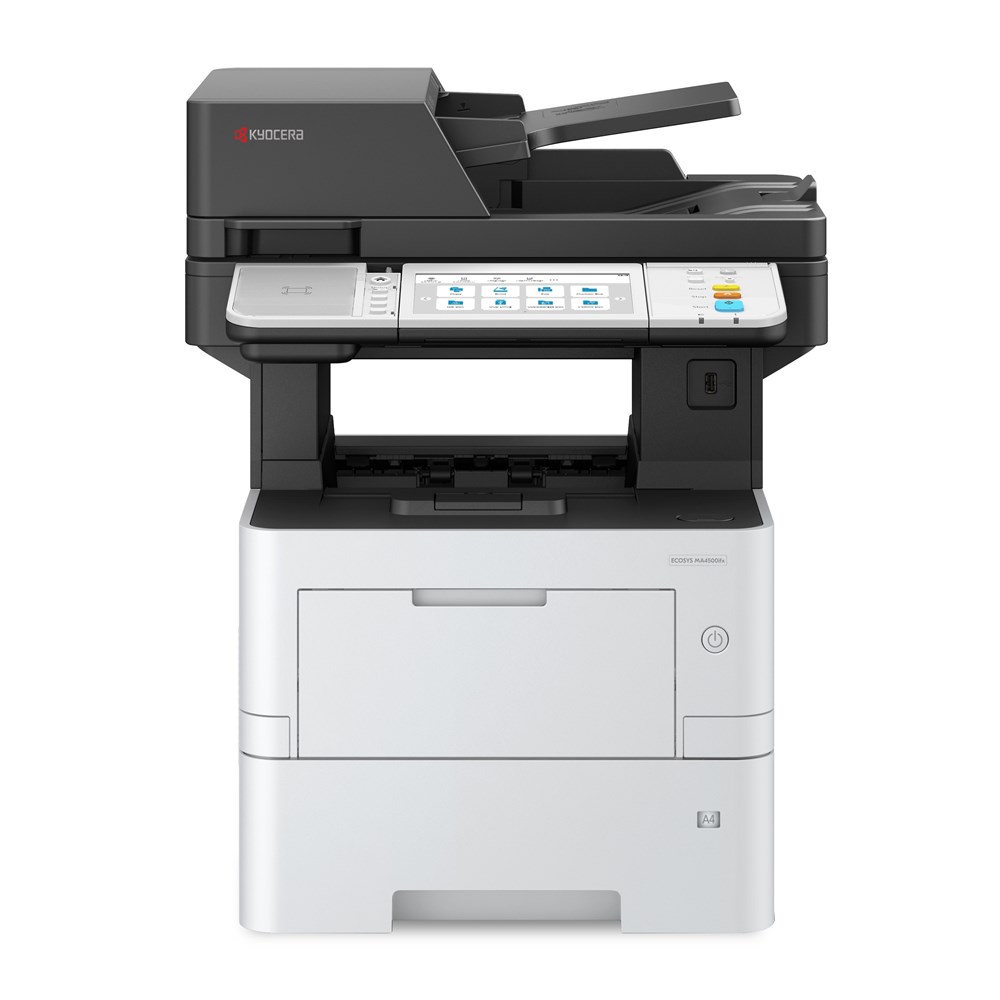

Kyocera - KYMA4500IFX

The ECOSYS MA4500ifx meets the high demands of users on versatility and productivity whilst also delivering exceptionally low running costs. This multifunctional product offers paper handling options with up to 2,600 sheets and modern security features.

• Double sided print, copy, scan and fax
• Data overwrite and encryption, Trusted Platform Module, Secure Boot and Run Time Integrity Check, S/MIME and TLS 1.3
• HyPAS™ solution platform enables powerful customisations
• Strengthened affinity with Microsoft Universal Print
• Optional SSD hard disk with Data Security Kit

ECOSYS makes your office more sustainable and efficient

Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

Driving efficiency through sustainability

The ECOSYS range provides new meaning to sustainability & product development, focusing on the environment through its approach.

Powerful, reliable and economical

For a printer that can be trusted to produce the goods whenever required.

ECOSYS: The sustainable solution

Unique to Kyocera, ECOSYS provides long-last and environmentally friendly printers at an economical cost.

Main Specifications

General type
Monochrome multifunctional for A4 format

Engine speed
Up to 45 pages A4 per minute. Duplex print speed: 22.5 page per minute, A4. Duplex copy speed: 22.5 page per minute, A4.

Warm-up time
Approx. 23 seconds or less

Power consumption
Printing: 563.8 W, Copying: 626.3 W, Ready mode: 56.3 W, Low power mode: 36.3 W, Sleep mode: 0.5 W

Warranty
2 years On-Site as standard

PAPER HANDLING

Input capacity
Multi-purpose tray: 100 sheets, 60 to 220 g/m², A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (70 x 140 to 216 x 356 mm), Banner paper up to 915 mm. Standard universal paper cassette: 500 sheet, 60–120 g/m², A4, A5, B5, Letter, Legal, Folio, Custom (140 x 210 to 216 x 356 mm).

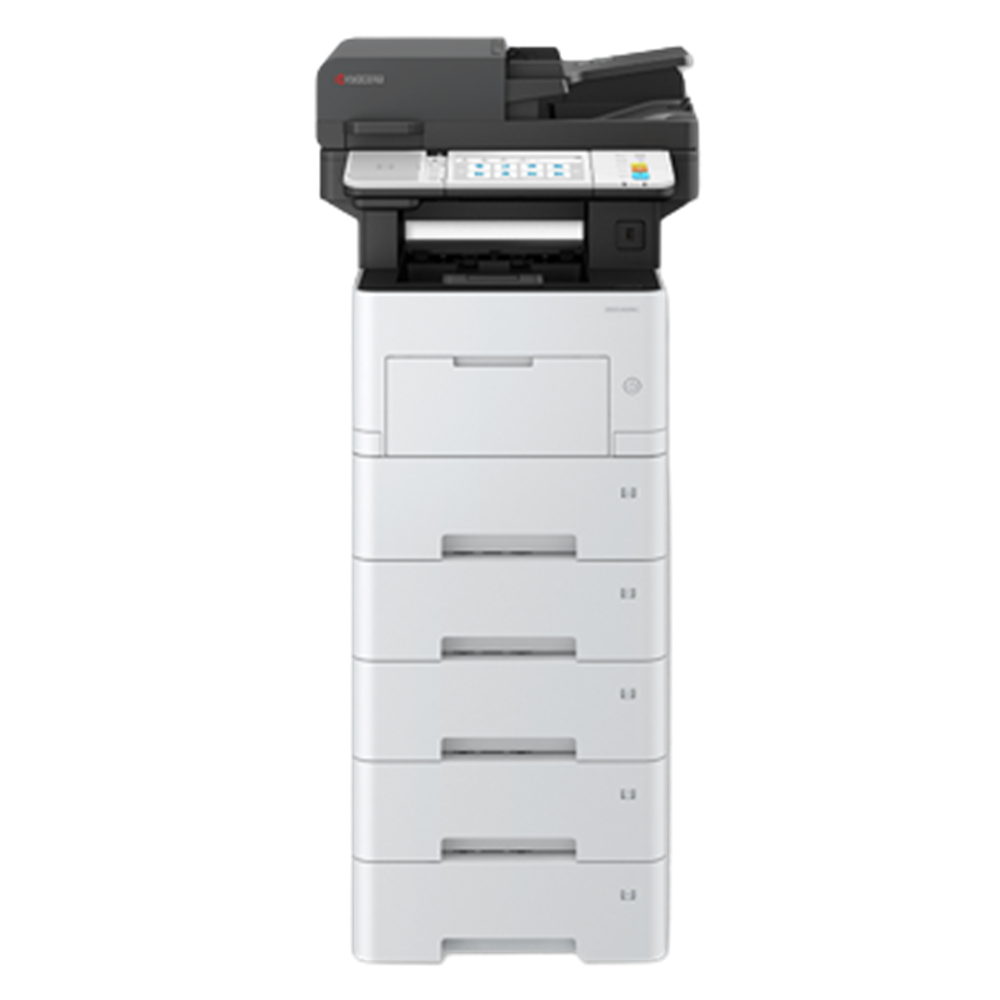

Max. input capacity with options
2,600 sheets

Duplex unit
Standard duplex unit, 60 to 120 g/m², A4, A5, B5, Letter, Legal, Custom (140x 210 mm - 216 x 356 mm).

Output capacity
250-sheet-face-down with paper full sensor

Document processor
Reverse Auto Document Processor as standard, 75 sheets, 50–120 g/m², A4, A5, A6, B5, Letter, Legal, Custom (105 x 148 to 216 x 356 mm).

PRINT

Processor
ARM Cortex-A53 Dual core 1.4GHz

Fonts
93 outline fonts (PCL6, KPDL3), 4 fonts (Calibri), 4 fonts (Cambria), 1 Bitmap font, 45 types of one-dimensional barcodes, 1 type of two-dimensional barcode (PDF417)

Features
PDF Direct Print, Internet printing IPP 1.0, E-mail printing, WSD print, secure printing IPP over TLS, Local and network authentication, Network data encryption IPsec, HTTPS, LDAP over TLS, SNMPv3, SMTP over TLS, POP over TLS, Encrypted PDF Direct Print, TLS 1.3, Secure Boot, Run-time Integrity Check, Microsoft Universal Print, Printing for Chrome OS

Applicable OS (Print)
All current Windows operating systems, MAC OS X Version 10.9 or higher, Chrome OS, Linux, as well as other operating systems on request

COPY

Copy Max. original size
A4 / Legal

Continuous copy
1 - 999

Zoom range
25 - 400 % in 1% steps

Preset magnification ratios
7 Reductions/5 Enlargements

Image adjustments
Text + Photo, Photo, Text, Chart/Map, Printed document

Digital features
Electronic sort (collate), ID card copy, 2in1, 4in1, auto cassette change, Skip blank page, Skip Line

SCAN

Scan functionalities
Scan-to-Email, Scan-to-FTP, Scan-to-SMB, Scan to USB Host, Network TWAIN , WIA , WSD scan, Chrome OS (Scan), AirPrint, Mopria

Scan speed
Simplex: 60 ipm (300 dpi, A4, b/w), 40 ipm (300 dpi, A4, colour). Duplex: 26 ipm (300 dpi, A4, b/w), 17 ipm (300 dpi, A4, colour).

Scan features
Banner Scan, Colour scan, integrated address book, Active Directory support, encrypted data transfer, multi send (e-mail, fax, SMB/FTP folder, print) at once, Blank page skip

Scan resolution
600, 400, 300, 200 dpi, 256 greyscales per colour

Max. scan size
A4 / Legal

Scan File type
File type TIFF, JPEG, XPS, Open XPS, PDF, PDF/A, PDF/A-1a/b, PDF/A-2a/b/u, Encrypted PDF, High compression PDF, MS Office file and Searchable PDF (optional Scan Extension Kit(A) is required)

Original recognition
Text, photo, text + photo, light text, optimised for OCR

FAX

Compatibility
Super G3

Modem speed
Max. 33.6 kbps

Scanning speed
2.0 seconds/sheet or less

Scanning density
Normal: 8 dot/mm x 3.85 line/mm (200 x 100 dpi), Fine: 8 dot/mm x 7.7 line/mm (200 x 200 dpi), Superfine: 8 dot/mm x 15.4 line/mm (200 x 400 dpi), Ultrafine: 16 dot/mm x 15.4 line/mm (400 x 400 dpi), Halftone: 256 grey scales

Fax Max. Original size
A4 / Legal

Fax features
Network fax, duplex transmission and reception, encrypted transmission and reception, polling transmission and reception, broadcast

CONSUMABLES

TK-3404
Microfine toner for 12,500 pages A4. Average continuous toner yield in accordance with ISO/IEC 19752
