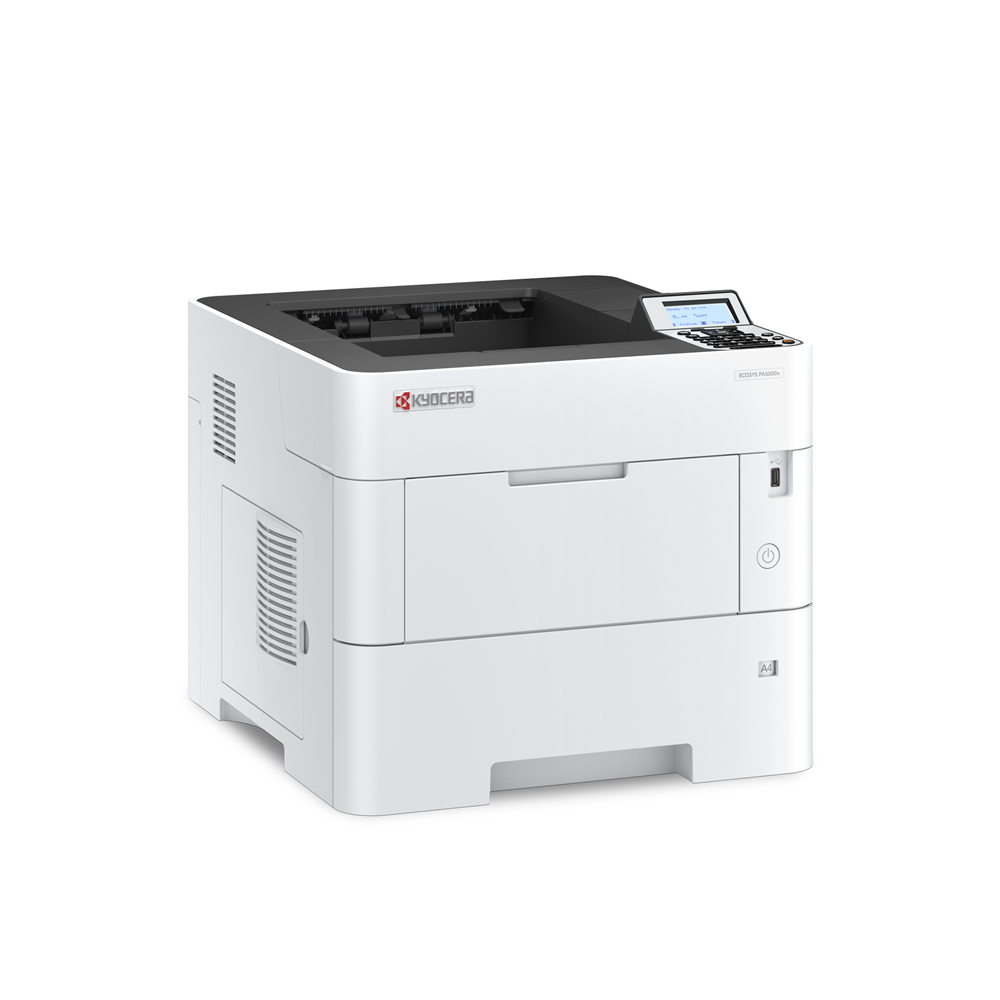

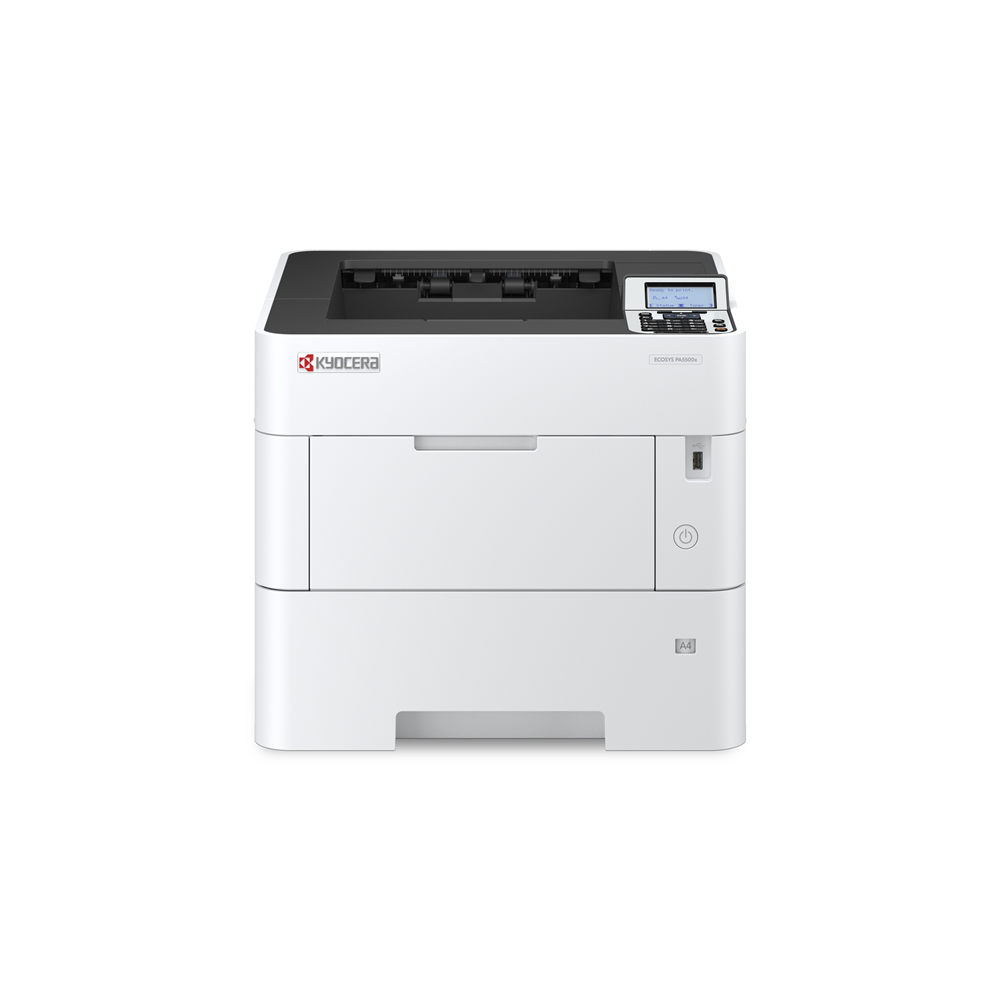

ECOSYS KYPA5500x

The flexible paper handling options with up to 2,600 sheets and modern security features, combined with long-life components provides exceptional efficiency and reliability, making the ECOSYS PA5500x the ideal choice to increase overall performance of workgroups. With a print speed of up 55 pages per minute and a fast first print out, it's always ready when you need it.

Data overwrite and encryption, Trusted Platform Module, Secure Boot and Run Time Integrity Check, S/MIME and TLS 1.3
Up to 6 ways of paper input for max. 2,600 sheet capacity
Strenghen affinity with Microsoft Universal Print
Optional SSD hard disk with Data Security Kit
Environmentally friendly: long-life components, low energy consumption

Engine speed

Resolution

Dimensions (W x D x H)

Warranty

Up to 55 pages A4 per minute. Duplex print speed: up to 39 pages per minute, A4.

1200 x 1200 dpi

380 × 410 × 320 mm

2 years On-Site as standard

Main Specifications

General type
Monochrome printer for A4 format

Engine speed
Up to 55 pages A4 per minute. Duplex print speed: up to 39 pages per minute, A4.

Warm-up time
Approx. 25 seconds or less from power on

Power consumption
Print - mode: 676.1 W, Sleep mode: 0.5 W, Ready - mode: 9 W

Warranty
2 years On-Site as standard

Paper Handling

Input capacity
100-sheet multi-purpose tray: MP tray: 60 - 220g/m2, A4, A5, A6, B5, Letter, Legal, Custom (70 x 148 - 216 x 356 mm), Banner paper up to 915 mm 500-sheet universal paper cassette: : 60 - 120g/m2, A4, A5, B5, Letter, Legal, Custom (140 x 210 - 216 x 356 mm)

Max. input capacity with options
2,600 sheets

Duplex unit
Duplex functionality as standard: Double sided printing: A4, A5, B5, Letter, Legal, Custom (140 x 210 mm - 216 x 356 mm), 60 - 120g/m2

Output capacity
500-sheet-face-down with paper full sensor and optional 250-sheet-face-up with PT-320

Printer Specifications

Processor
ARM Cortex-A53 Dual core 1.4GHz

Fonts
93 outline fonts (PCL6/KPDL 3), 4 fonts (Calibri), 4 fonts (Cambria), 1 Bitmap font, 45 types of one-dimensional barcodes, 1 type of two-dimensional barcode (PDF417)

Features
PDF Direct Print, Internet printing IPP 1.0, E-mail printing, WSD print, secure printing IPP over TLS, Local and network authentication, Network data encryption IPsec, HTTPS, LDAP over TLS, SNMPv3, SMTP over TLS, POP over TLS, Encrypted PDF Direct Print, Universal Print, Printing for Chrome OS.

Applicable OS (Print)
All current Windows operating systems, MAC OS X Version 10.9 or higher, Chrome OS, Linux, as well as other operating systems on request.
