Kyocera ECOSYS devices are designed to do more with less. With long-life components, low energy use, and reliable performance, they help your team work smarter while cutting costs and downtime.

Copy, colour scan and fax functionality
Up to 32/17PPM in black and white cloud-ready applications
Minimum installation and operation requirements
Long-life components provide exceptional reliability
HyPAS solution platform enables powerful customisations.

MAIN SPECIFICATIONS:

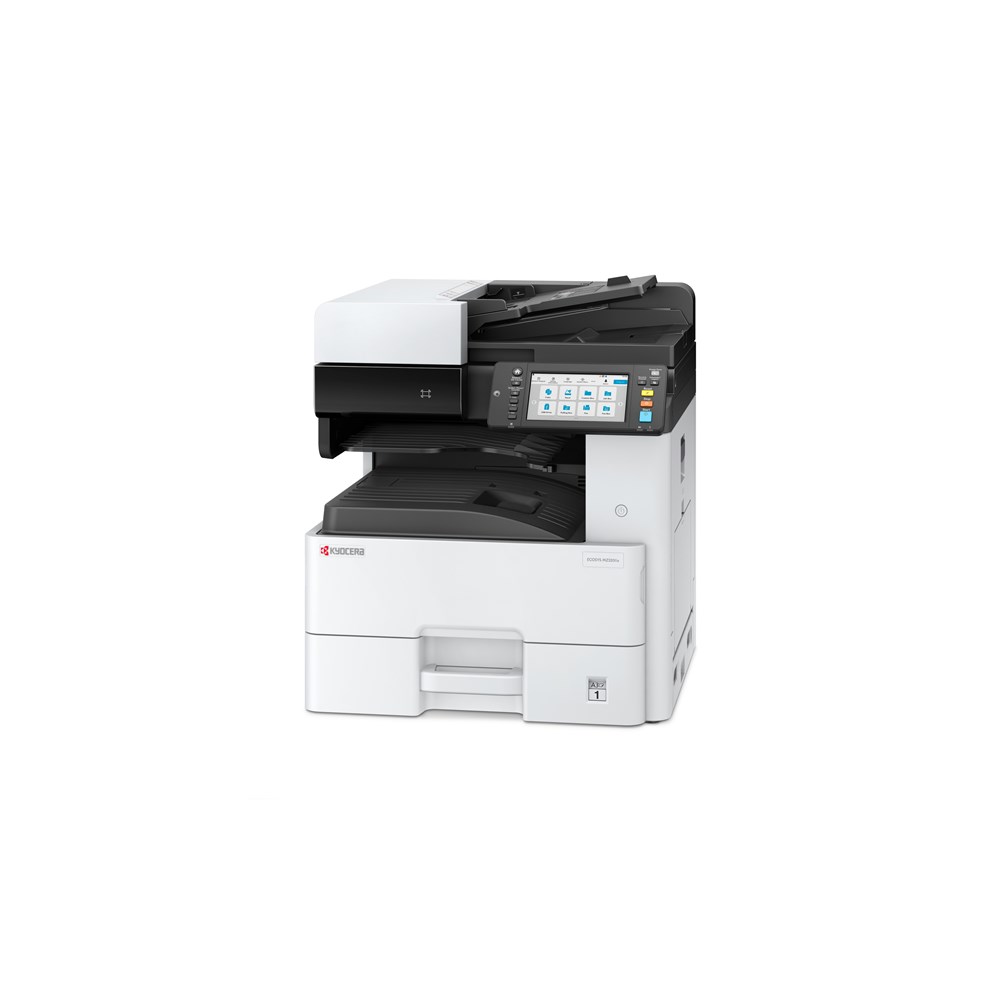

General type - Monochrome multifunctional for A3 format

Engine speed - Up to 32/17 pages A4/A3 per minute (print/copy)

Warm-up time - 21.5 seconds or less

Power consumption - Sleep-mode: less than 0.3 W, Ready mode: 70 W, Copying/Printing: 490 W

PAPER HANDLING

Input capacity - 100-sheet multi-purpose tray, 45–256 g/m²: A3, A4, A5, A6, B5, Ledger, Letter, Legal, Folio, Custom (98 x 148 to 297 x 432 mm), 500-sheet standard universal paper cassette; 60–163 g/m², A3, A4, A5,´B5, Ledger, Letter, Legal, Folio

Max. input capacity with options - 1,600 sheets

Duplex unit - Duplex as standard supports 60–163 g/m²

Max. output capacity - Max. 300 sheets: 250 sheets face-down (Main Tray), plus 50 sheets (standard Job Separator Tray)

Document processor - Standard reversing document processor: 50-sheet, Simplex scan 45–160 g/m², Duplex scan 50–120 g/m², A3, A4, A5, B5, Letter, Legal, Custom (140x182 to 297x432mm)

PRINT

Processor - ARM Cortex-A53 (Dual Core) / 1.4GHz

Fonts - Outline font:  93 fonts (PCL6) /  93 fonts (KPDL3) /  4 fonts (Calibri) /  4 fonts (Cambria)

Bitmap font:  1 font /  79 fonts: processed as outline font

Features - Encrypted PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3, Private Print , Quick Copy, Proof and Hold, Job Storage and Job Management functionality

Applicable OS - MAC OS X Version 10.9 or higher, Unix, Linux as well as other operating systems on request

COPY

Max. original size - A3/Ledger

Continuous copy - 1 - 999

Zoom range - 25 - 400 % in 1% steps

Preset magnification ratios - 5 Reductions/5 Enlargements

Image adjustments - Text, Photo, Text + Photo, Graphic/Map

Digital copy features - Scan-once-copy-many, electronic sort, 2in1, 4in1, job reserve, priority print, program, auto duplex copy, split copy, continuous scan, auto cassette change (PF-470 or PF-471 is required), copy density control, Prevent Bleed-Through, ID card copy, Skip blank page

SCAN

Scan functionalities - Scan-to-email, Scan-to-FTP, Scan-to-SMB, Scan to USB Host, Network TWAIN, WIA, WSD scan

Scan speed - 50 ipm (300 dpi, A4, b/w), 50 ipm (300 dpi, A4, colour)

Scan resolution - 300 dpi x 300 dpi(Default),200 dpi x 200 dpi,200 dpi x 100 dpi 600 dpi x 600 dpi,400 dpi x 400 dpi,200 dpi x 400 dpi 1200 dpi x 1200 dpi (only with TWAIN Driver, WIA Driver

Max. scan size - A3/Ledger

File type - TIFF, PDF, PDF/A, JPEG, Open XPS, Encrypted PDF, High compression PDF, PDF/A-1a/b, PDF/A-2a/b/u

Original recognition - Text, photo, text + photo, light text, optimised for OCR

FAX

Compatibility - G3

Modem speed - Less than 3 seconds

Scanning speed - 2.0 seconds/sheet or less

Transmission speed - Max. 33.6 kbps

Scanning density - Normal: 8 dot/mm x 3.85 line/mm, Fine: 8 dot/mm x 7.7 line/mm, Superfine: 8 dot/mm x 15.4 line/mm, Ultrafine: 16 dot/mm x 15.4 line/mm, Halftone: 256 gray scales

Max. original size - A3/Ledger

Fax features - Network fax, duplex transmission and reception, encrypted transmission and reception, polling transmission and reception, broadcast
