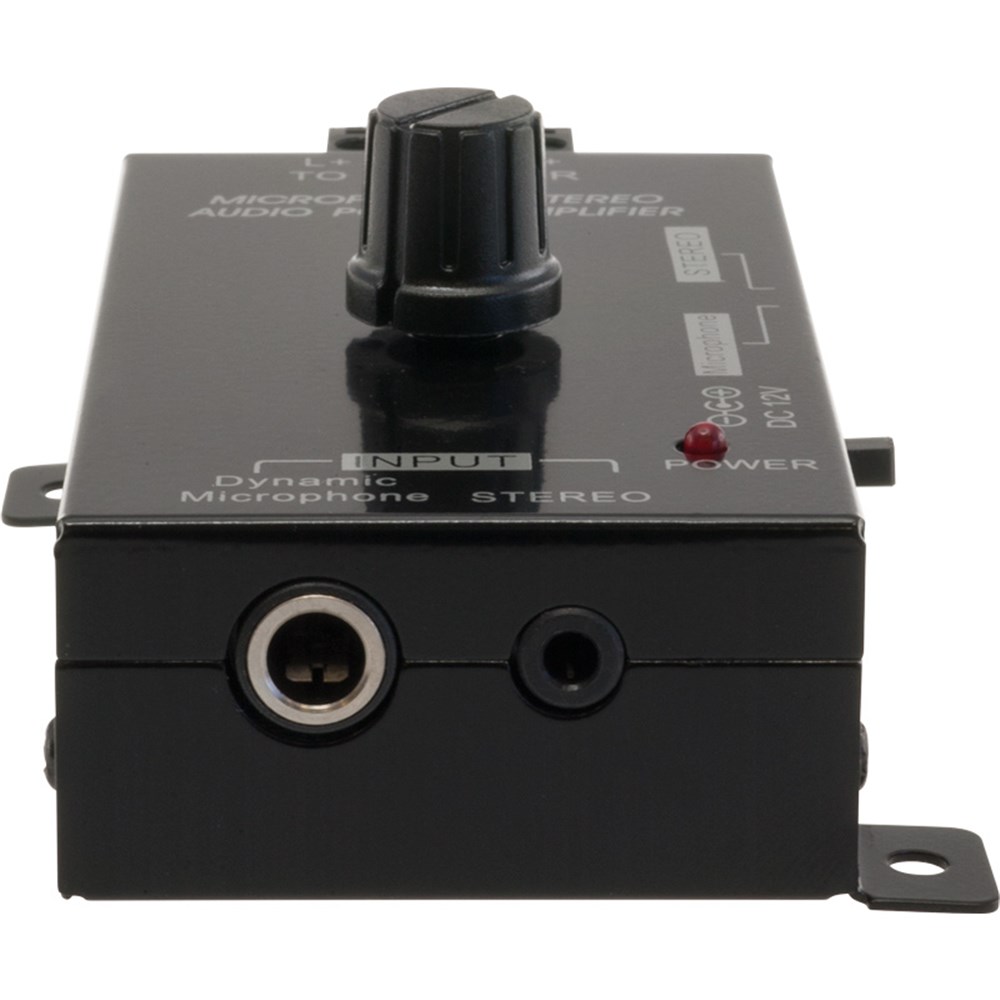

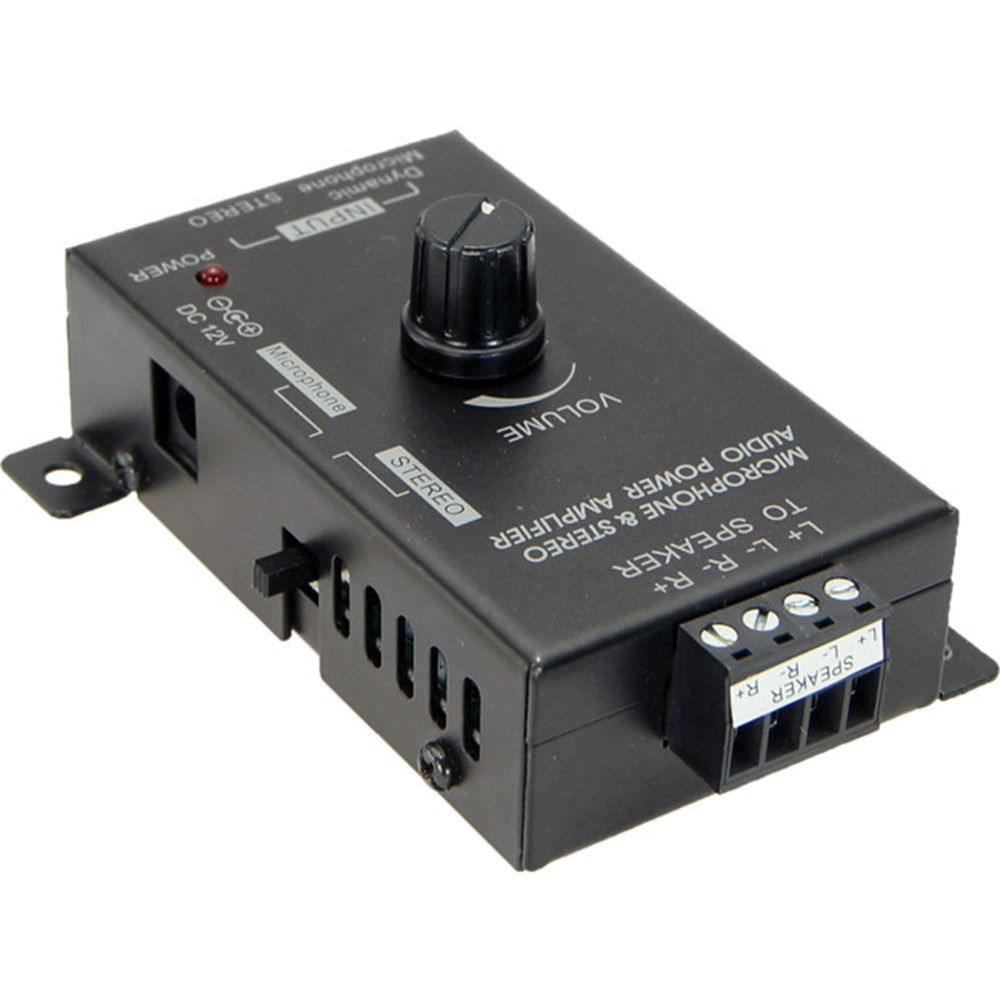

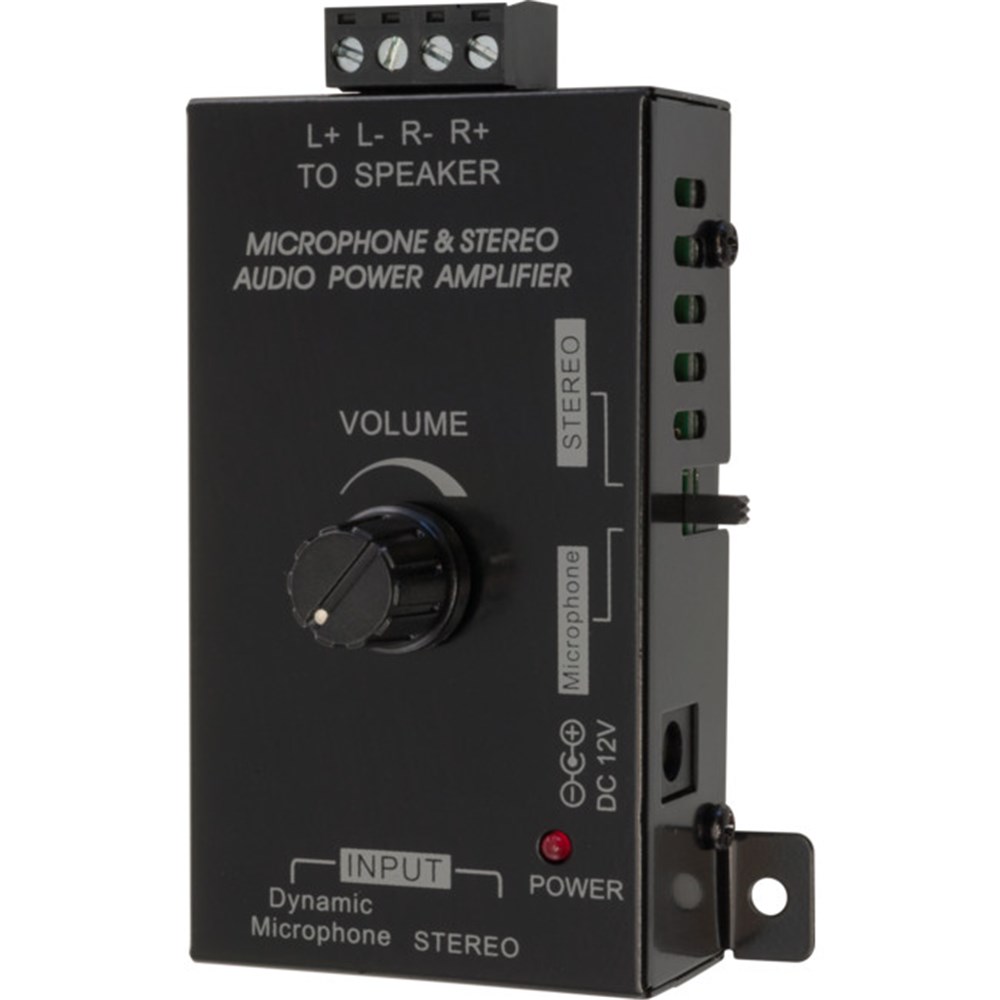

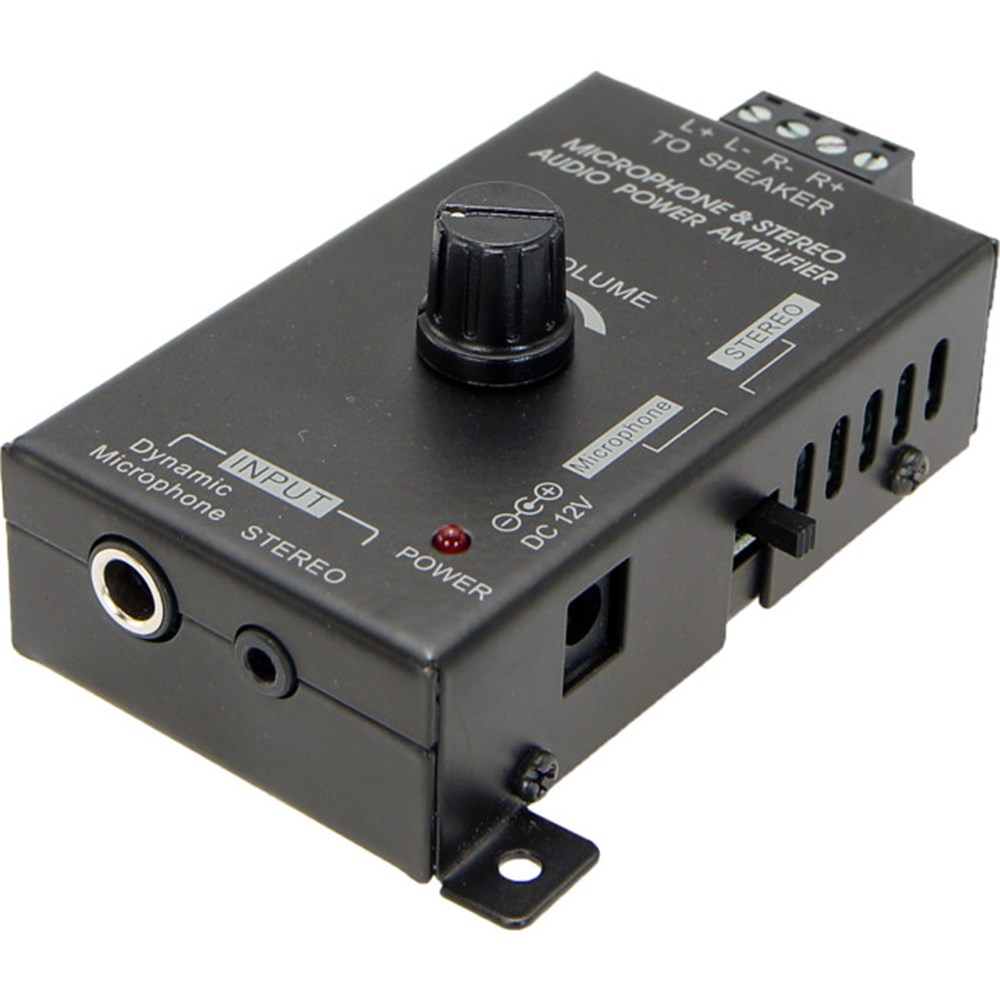

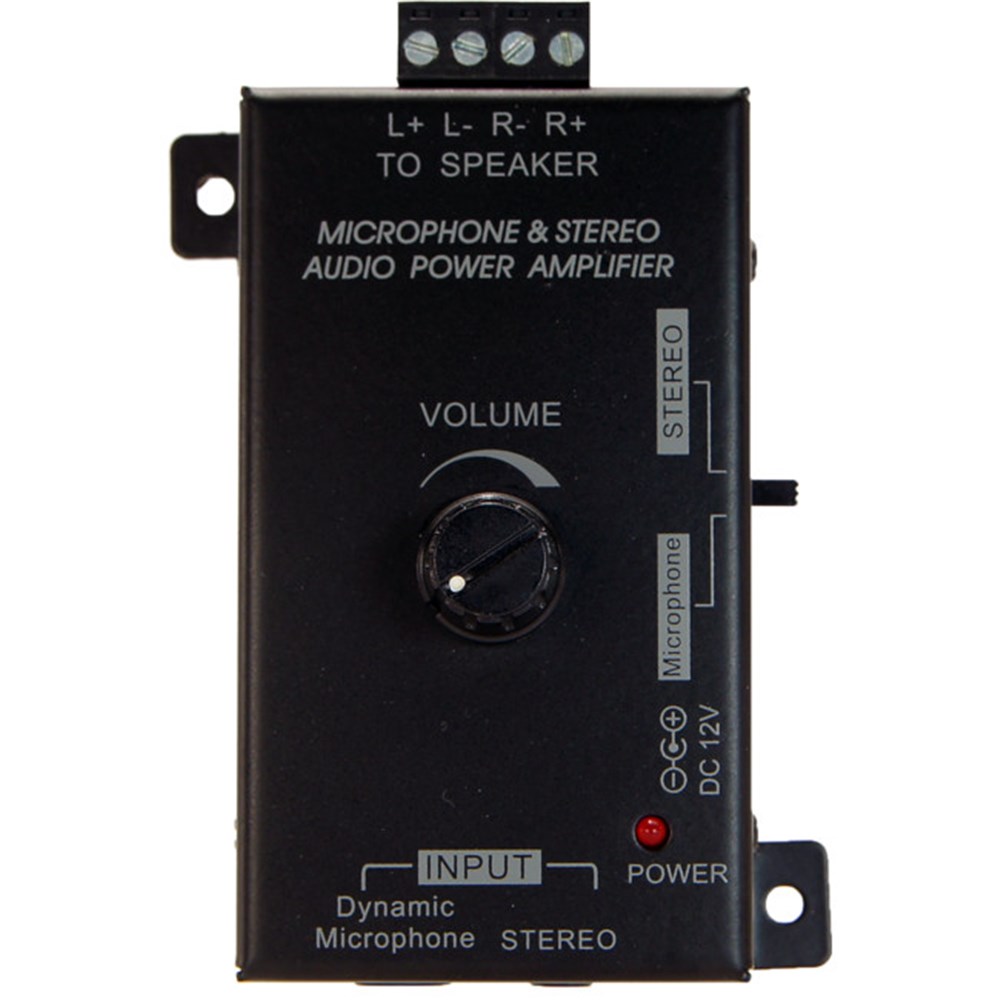

Pro2 - RA-PRO1328

Use the PRO1328 to power in-ceiling speakers with the audio output from any source device such as computers, DVD players, TVs and even Microphones. Alternatively the PRO1328 is perfect for shop display installations, where basic audio amplification and compact size is required.

• Computers
• DVD Players
• TVÕs
• Microphones

• Small Size and Compact
• Also Suitable for wall- mounting
• To Speaker scre terminals handle wire sizes from 24 to 12 gauge

• Inputs: Dynamic microphone or stereo audio line level
• Microphone pre-Amplifier gain: 40dB
• Power Amplifier Type: Stereo Class-D
• Output power: 15W(rms) per channel (@ RL=4 ohm)
• THD+N: 0.06 % (@ RL=8 ohm, f = 1 kHz)
• Minimum Load Resistance: 4 ohm
• Includes Speaker Protection circuit.
• Power Source: 12 VDC / 2A
• Size (LxWxH): 92.6mm x 73.4 mm x 26.6mm
• Net Weight (Unit only): 160 g
