Pro2 - RA-PRO1323

With a diverse range of inputs, including digital (optical or coaxial) and dynamic microphone inputs, and the ability to adjust each zoneÕs volume independently, the PRO1323 is a quick and easy way of adding audio in up to four rooms. It also features a Loop-out for expanding to another unit, increasing the number of zones further!

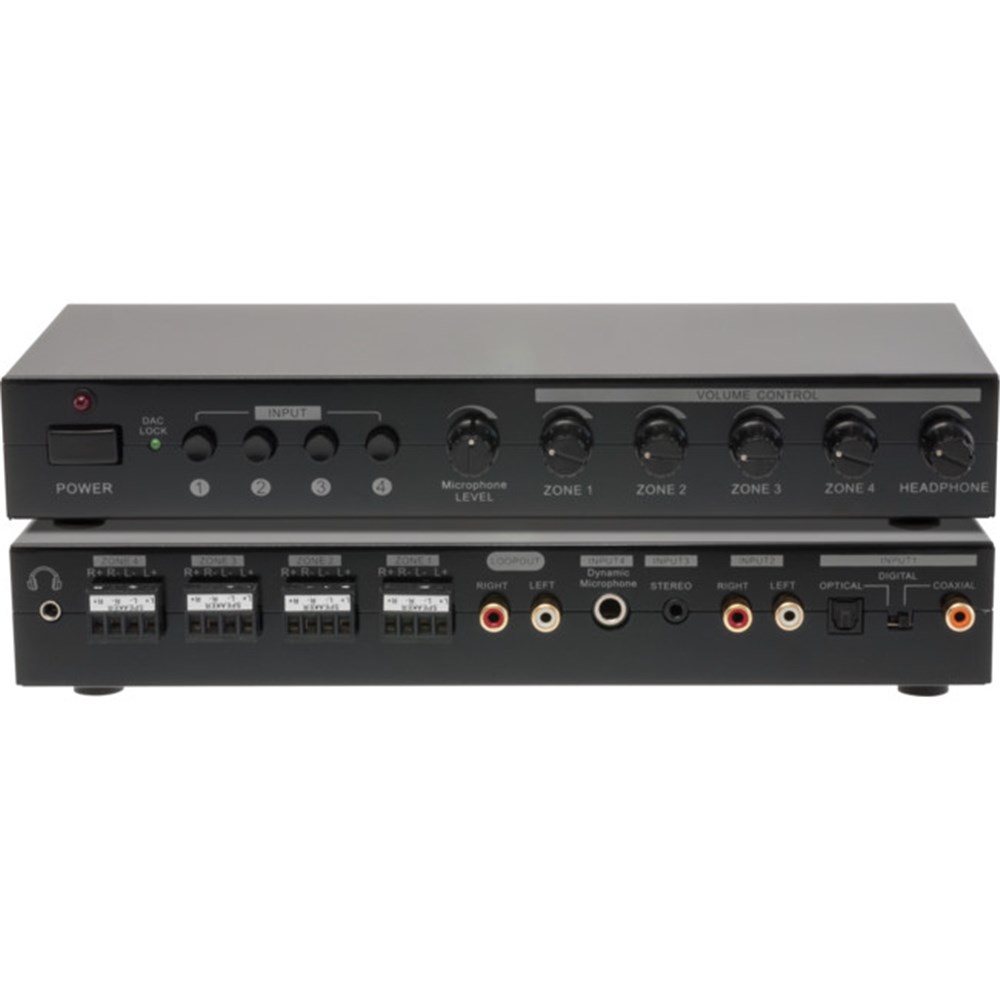

• Four-in and five-outIN: 1x Digital (Optical / Coaxial selectable), 1x RCA Stereo, 1x 3.5mm Stereo, 1x Dynamic Microphone inputOUT: 4 Speaker output + 1 Headphone output
• Built-In audio digital to analogue converter (DAC): Audio DAC Lock indicator
• Independent microphone level control
• Individual speaker volume control
• Provides line loop-out for expanding to more zones
• Large detachable terminal block (supplied) for quick and easy installation: Screw terminals handle wire sizes from 24 to 12 gauge

• Amplifier Type: Stereo Class-D
• Output power: 15W(RMS) per channel (@ RL=4 ohm)
• THD+N: 0.06 % (@ RL=8 ohm, f = 1 kHz)
• Minimum Load Resistance: 4 ohm
• Includes Speaker Protection circuit.

• Output power:105mW(RMS) per channel
• THD+N: 0.05 % (@ RL=16 ohm, f = 1 kHz)
• Minimum Load Resistance: 16 ohm

• Power Consumed: 9A Max

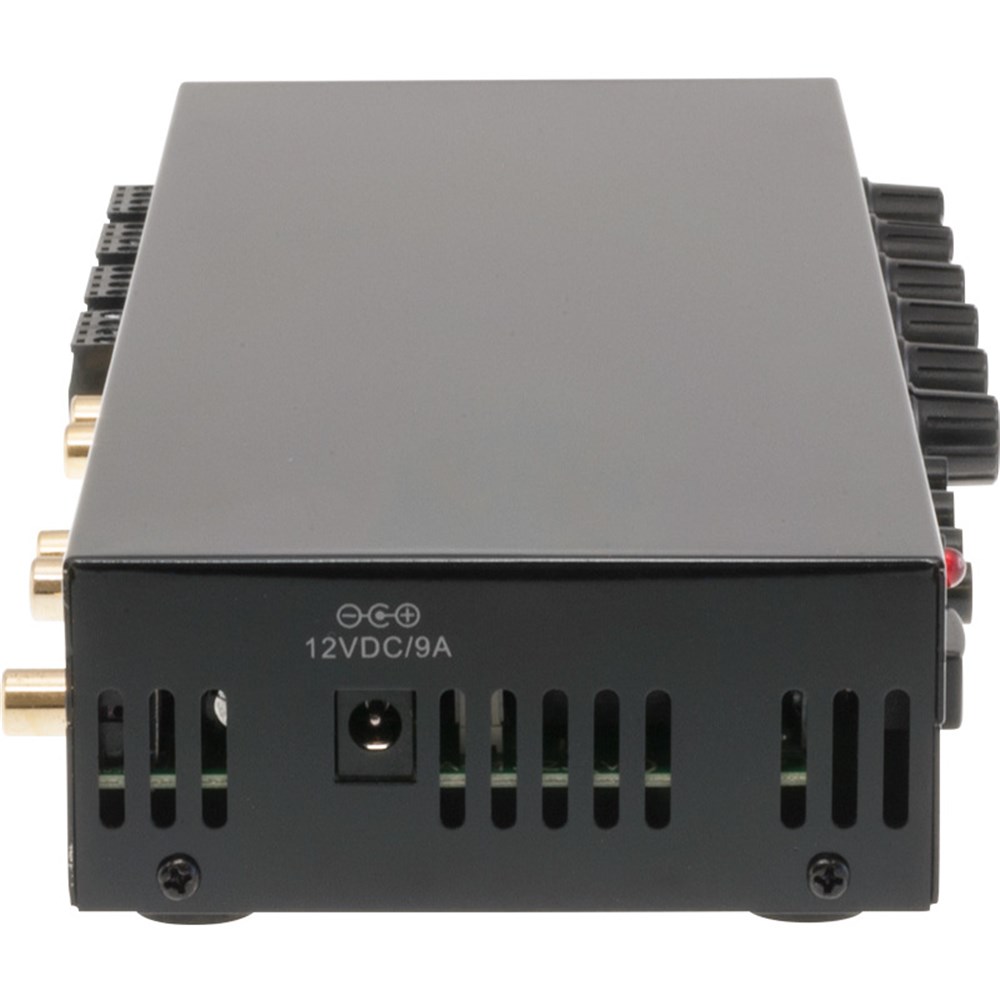

• Power Source: DC 12 Volts
• Size (LxWxH): 285mm x 128mm x 43mm
• Net Weight (Unit only): 0.8 Kg
